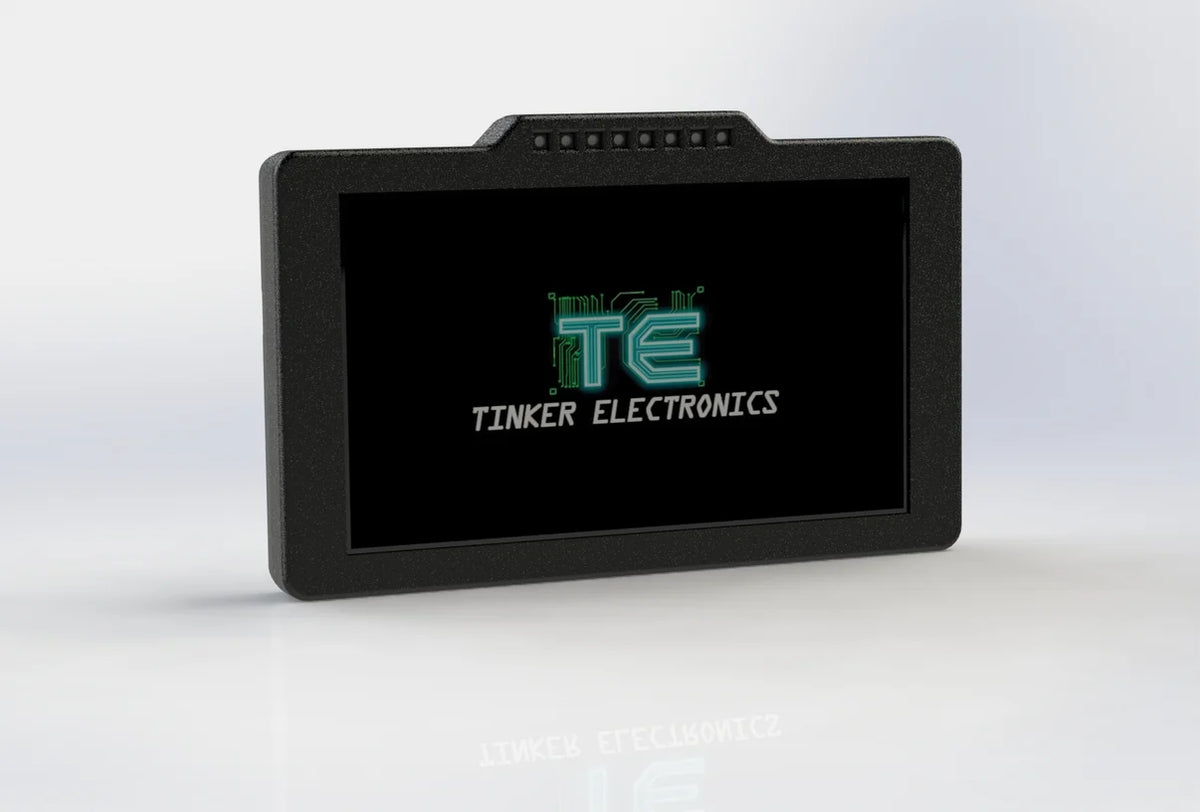

Tinker 10" LT Digital Display

The 10"LT is a whopping 10-inch digital dash display that reads live engine data from your ECU over CAN bus and shows it on configurable screens. It is budget priced, with two analog inputs and four virtual switched outputs.

• Quick boot time.

• CANBUS Communication.
• 4 Configurable layouts per layout pack (Change at any time).

• EGT Page.
• System overview page.
• 4 virtual switched/logic outputs.
• CAN Switches.
• 2 analog inputs.
• 2 resistance inputs.
• Customizable shift light.
• Customizable alarms.
• Built-in GPS (comes with antenna)
• Adjustable brightness.
• 2 way communication with supported platforms.
• Single SD card slot for updates.
• Turn signal feature.
• Comes with Pre wired Loom to flying ends and GPS Antenna

Compatible with:

• Megasquirt
• Holley HP/Term/Dom
• Holley Sniper
• MaxxECU
• Hondata
• ECU Master
• Haltech
• OBD2(CAN)*
• AEM
• FOME
• Link ECU
• FuelTech

Expandable I/O via the 3DRS CAN Expander

Tinker LT Manual

** Display measures 270mm x 160mm and may be difficult to fit in factory cluster locations....please contact us to see if we can make it fit for your vehicle **

*Requires a OBDII supported PCM, if in doubt please contact us.
